A method is required which can be used, after damage has occurred to diesel engines on ships or locomotives, for exami-nation, or preventative nondestructive testing of valves in the assembled condition, after the control mechanism has been removed.
This means that only the front of the valve shaft is accessible.
对去除控制机制以后的船或者机动车的柴油发动机出现损坏的情况，要求在装配的情况下对阀门进行一种检验或者是预防性的无损检测。
这就意味着只有阀门轴的前端面可以作为检测面。
SOLUTION: 方案

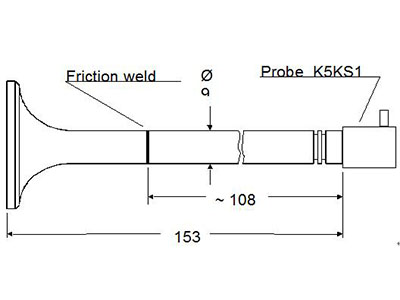

It is proposed that the special probe K5KS1 be used in the direct coupling mode on the front of the valve shaft:
特殊的探头K5KS1可用于和阀轴的前端面的直接耦合
The probe’s crystal element diameter is matched to the shaft’s diameter. The acoustically absorbent protection layer (coupling membrane) reduces coupling deviations caused by standard hard-faced probes.
探头的晶片直径和轴的端面相匹配，声学吸收保护层（耦合膜）可以降低由于探头硬接触面引起的偏差。
Indications from the weld zone are evaluated which extend above the noise level caused by coarse grain structure for-mation.
超出由于粗晶粒结构引起的噪声的焊缝区域显示进行评估
The complete weld area is covered by guiding the sound beam into the valve shafts.
调节进入阀轴的声束覆盖整个焊缝区域

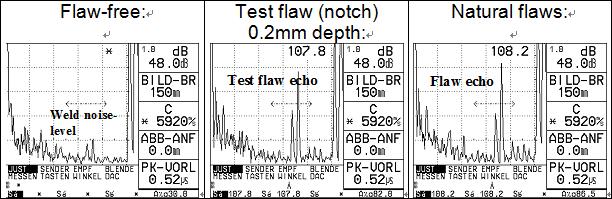

Typical display indications:
典型的显示
It is recommended that the test method be used due to its easy application and its clear indications in engine production and for input checks.
推荐的检测应用简单并且能够形成清晰的显示
SUITABLE EQUIPMENT: 设备
Ultrasonic Flaw Detector:
超声设备 USD 15X USM 22 USM 25
Probe: K5KS1
探头
